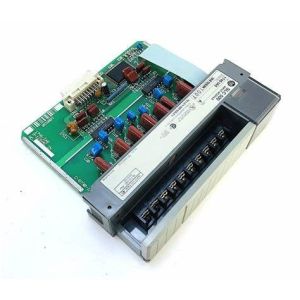

1762-IA8 ALLEN BRADLEY PLC Micrologix Controller Analog Input Module
Technical Specifications for 1756-PB75
Manufacturer Rockwell Automation
Part Number/Catalog No. 1756-PB75
Chassis Series Series B; Series C
Chassis Compatibility 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
Hold Up time 35 ms @ 18V DC; 40 ms @ 24V DC; 40 ms @ 32V DC
Output Power 75 W @ 0…+60 °C (+32…+140 °F)
Current Capacity 1.5A at 1.2 VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC
Max Inrush Current 30 Amperes
Isolation Voltage 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s
Input Voltage Range 18-32VDC
Nom Input Voltage 24VDC
Brand Allen-Bradley
Series ControlLogix
Module Type Standard Power Supply
Input Power 95 W
Location 1756 Chassis Left Side
Weight 0.95 kg (2.10 lb)
Dimensions 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.)
Input Voltage 24 Volts DC
Voltage Range 18-32 Volts DC
Power Output 75 Watts at 60 Celsius
Chassis Series B
Operating Temperature 32-140 Fahrenheit (0-60 Celsius)
Enclosure None
UPC 10612598206862
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| ABB Module | AB Module 1756-,1759- Tourch Screen 2711- |
| Mitsubishi Drive MR- , Motor HA -,HC | Emerson MoudlesVE- ,KJ - |
| Fanuc motor A0-, Drive | Yokogawa transmitter EJA- |
| Rosemount Transmitter 3051- | Schneider Module 140- |
| Panasonic Motor , Drive MH- | Siemens Module 6ES-, Touch Screen 6AV- |
EtherNet/IP Network Configuration
EtherNet/IP Communication Modules
1756-ENBT, 1756-EN2F, 1756-EN2T, 1756-EN2TP, 1756-EN2TPK, 1756-EN2TPXT, 1756-EN2TR, 1756-EN2TRXT,
1756-EN2TSC, 1756-EN2TXT, 1756-EN3TR, 1756-EWEB, 1768-ENBT
CompactLogix 5370 Controllers
EtherNet/IP Adapters
1734-AENT, 1734-AENTR, 1769-AENTR, 1794-AENT, 20-COMM-E, 22-COMM-E, 20-750-ENETR
Embedded Switches
1783-ETAP, 1783-ETAP1F, 1783-ETAP2
Installation 1762 I/O is suitable for use in an industrial environment when installed in accordance with these instructions. Specifically, this equipment is intended for use in clean, dry environments (Pollution degree 2(1)) and to circuits not exceeding Over Voltage Category II(2) (IEC 60664-1).(3)
DIN Rail Mounting The module can be mounted using the following DIN rails: 35 x 7.5 mm (EN 50 022 - 35 x 7.5) or 35 x 15 mm (EN 50 022 - 35 x 15). Before mounting the module on a DIN rail, close the DIN rail latch. Press the DIN rail mounting area of the module against the DIN rail. The latch will momentarily open and lock into place. Use DIN rail end anchors (Allen-Bradley part number 1492-EA35 or 1492-EAH35) for vibration or shock environments.
FAQ for 1756-PB75
What is the difference between the 1756-PA75 and 1756-PB75?
The 1756-PA75 operates when supplied with 85-264VAC while the 1756-PB75 is powered by an external 18-32VDC supply voltage.
Can I use this power supply as voltage source of panel components?
No. This power supply is intended only for the ControlLogix chassis.
What are compatible ControlLogix chassis for use with the 1756-PB75?
Compatible chassis are 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17.
